Solinst 102M Mini Water Level Meter

The Solinst Model 102 Water Level Meter is designed to measure groundwater levels, especially in small diameter tubes and piezometers, or where a flexible assembly is needed to get past down hole instrumentation.

NEW UPGRADED CABLE & FACEPLATE DESIGN – The upgraded cable has a heavy-duty yellow polyurethane jacket with distinct laser markings offering better visibility in the field.  In addition, the cable has the benefit of being more abrasion-resistant, and resilient!

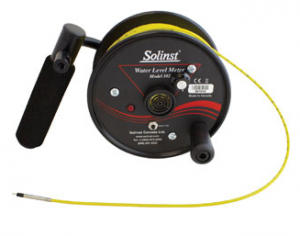

The laser marked coaxial cable is mounted on a convenient small reel that is light-weight and fits easily into a mini carrying case or backpack. The accurate cable is marked each 1/100 ft. or each millimeter.

The 102M Mini Water Level Meter is available in 80 ft. and 25 m lengths. There is the choice of the P4 or P10 Probe. Model 102 Probes are designed for flexibility. The probe tips use a recessed design to minimize false signals in cascading water.

P10: 3/8″ dia. x 2.75″ long (10 mm x 70 mm) stainless steel with 10 stainless steel weights, weighing 6.14 oz (174 g). This probe is ideal for the majority of water level measurement applications. The flexible weight assembly allows easy well access and keeps the cable hanging straight in monitoring wells.

P4: 0.157″ dia. x 1.5″ long (4 mm x 38 mm) stainless steel weighing 0.35 oz (10 g), with no weights. It is ideal for shallow applications and for accessing very narrow diameters, especially the channels of the Solinst CMT System, DrivePoint Piezometers or narrow open tubes.
