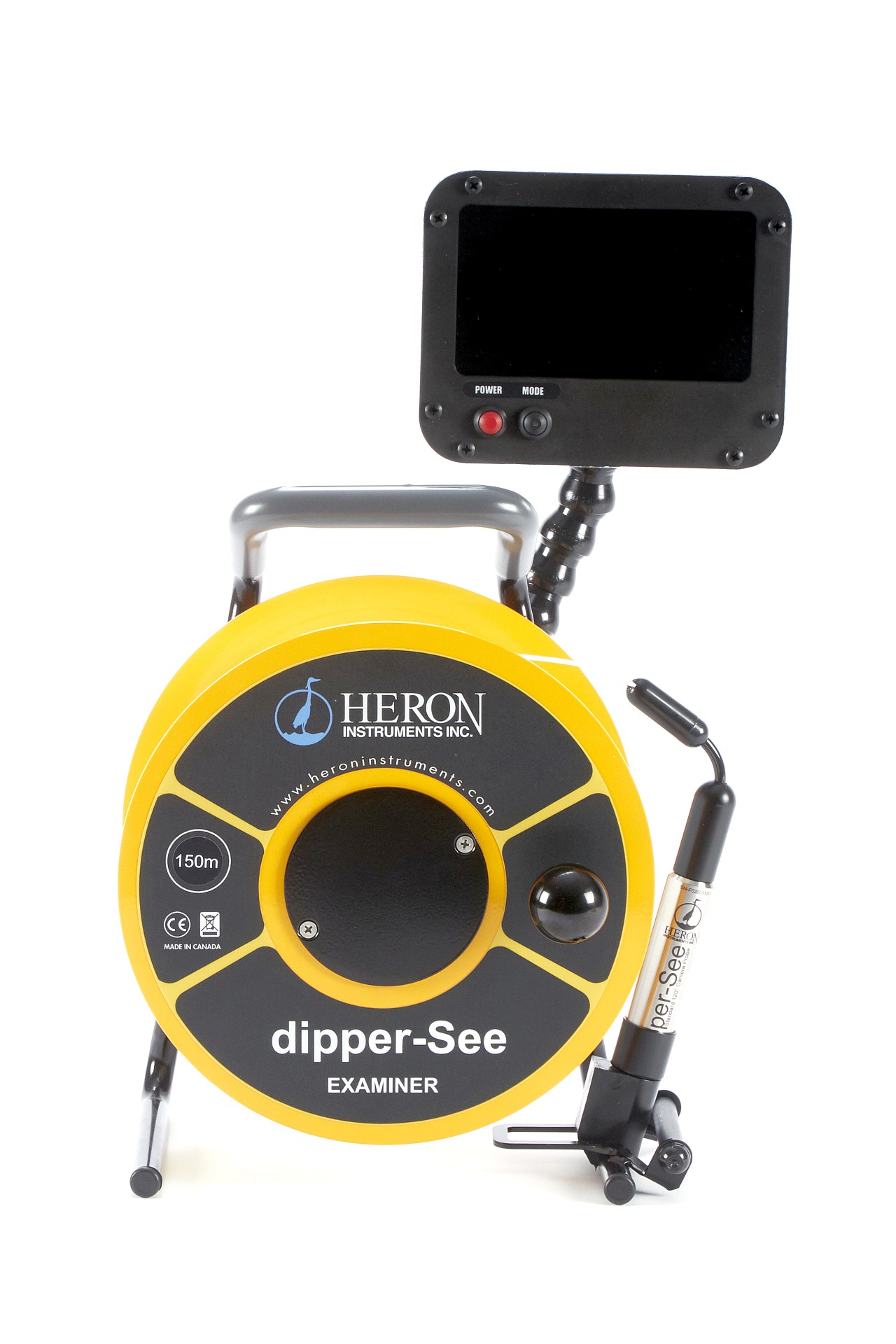

Heron dipper-See EXAMINER

The Heron dipper-See EXAMINER is a robust, cost effective, vertical downhole inspection camera. Designed with portability in mind, this self-contained unit is ideal for viewing in wells, drains, vertical shafts, open bodies of water, boreholes and narrow tubes from 25mm (1″) diameter. The versatile positioning arm, conveniently attached to the frame, offers an ergonomic solution for adjusting the monitor for viewing the HD display screen at different angles and lighting conditions. The built-in hanger on the frame can support the unit at the top of the well, allowing for hands-free viewing while in the field.

FEATURES:

  • See-120 Camera Probe – 25mm (1″) diameter, 316 marine grade, fully pressure rated, field replaceable
  • Lens – robust, scratch resistant clear sapphire
  • LED Lights – 7 ultra-bright
  • Monitor/Positioning Arm – resolution 700TVL 7″, full colour, removable
  •  Batteries (x2) – removable, rechargeable lithium ion, up to 5 hours (3200mAh) per battery
  • Charger – plug type A, AC Input, compact, portable
  •  DVR– records video and audio feed
  •  SD Card – removable for transferring files to computer
  • Microphone – 3.5mm jack, for audio voice over
  • Centralizer – removable, centers and stabilizes camera probe in well
  • Retrieval Hook – for light weight items
  • Monitor Visor – for glare free viewing
  • Hanger and Tape Guide – built-in, to support the unit at the well head and protect the tape from sharp edges
  • Tape – polyethylene, 4 conductors, marked every meter or foot
  •  Super Tough, Wheeled Case – to transport and protect your investment from the elements
